CDG-Mounting Brackets For Dori Poles

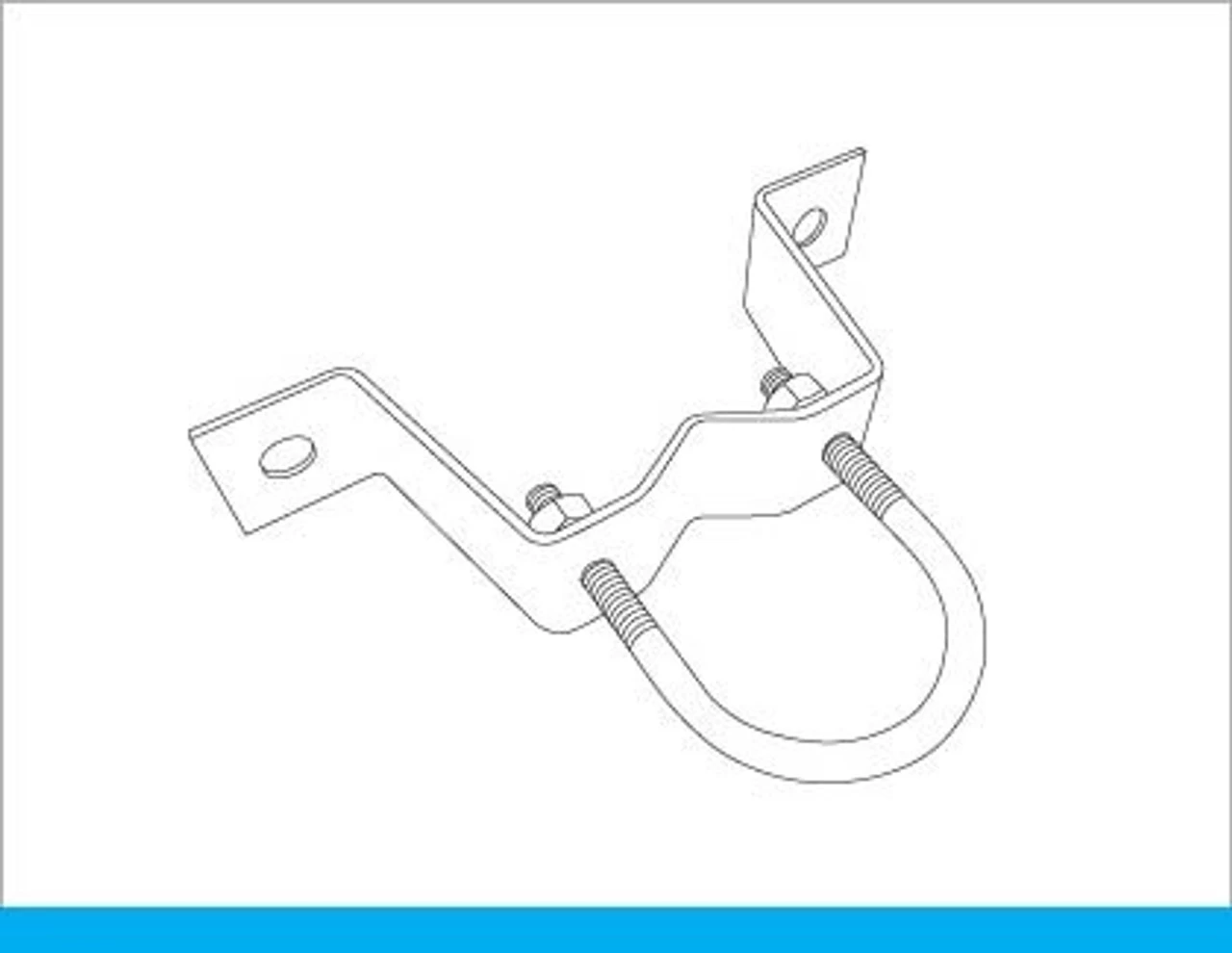

Dock Mount Bracket

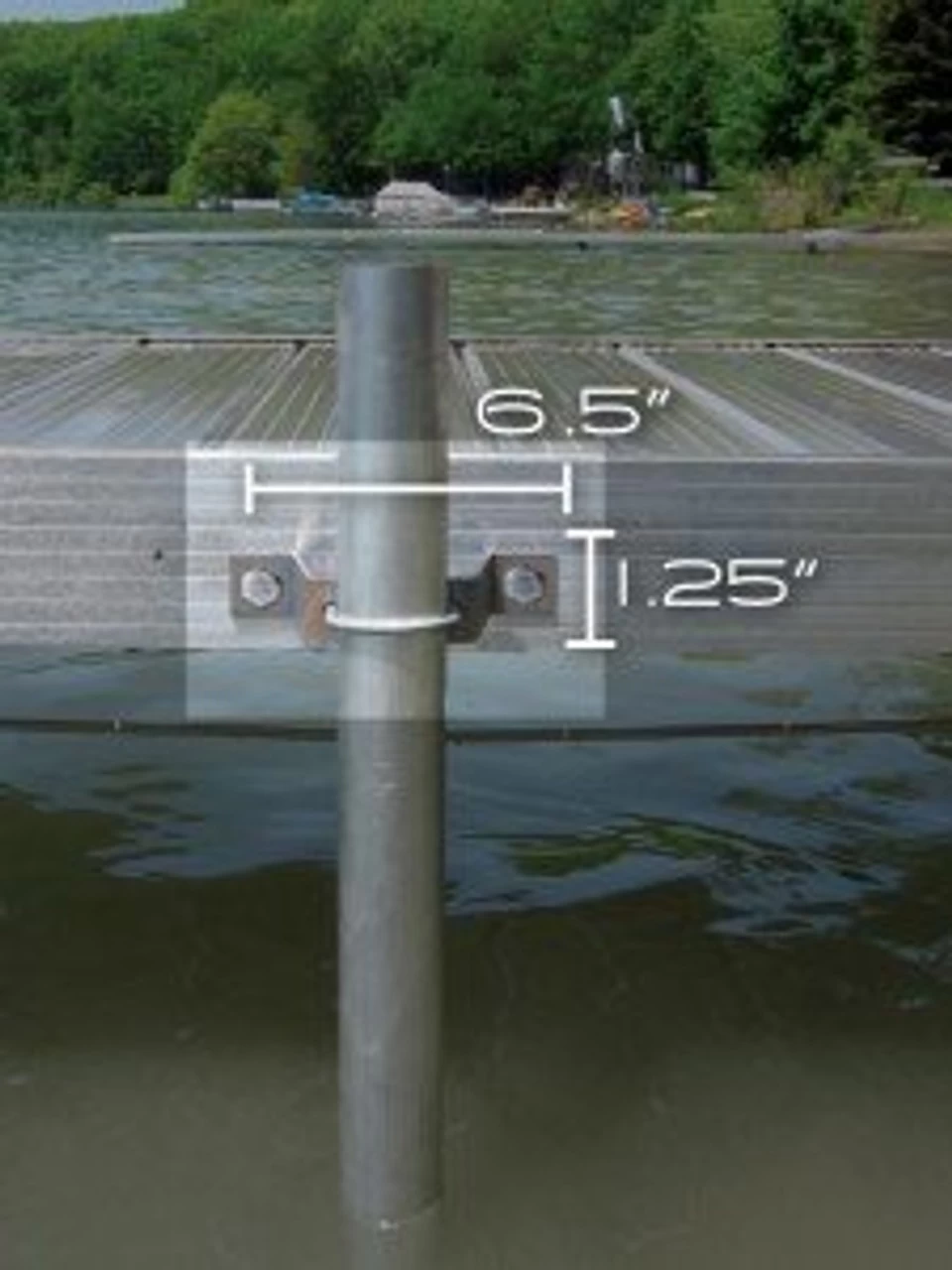

This is a helpful bracket for the “Do It Yourself-er” to attach your Dori Pole to your dock. The Dock Mount bracket is recommended for use with the 19’ three-pieces Dori Pole (Here), and 13.5′ mid-rise pole (Here). See below for more information on how to use this bracket.

• Durable steel bracket, zinc plated
• Serves as a wind guide and navigation point on the water
• Dori Pole helps deter nuisance birds
• Includes U-Bolt and 2 Locknuts
• Installation instructions included
• Made in Michigan

Additional items needed for installation (not included)

IMPORTANT: Additional items needed for installation which can be purchased at a marine store: 2” outside diameter aluminum post not included (to determine length of post needed, measure from lake bottom to point at which you want the top of this post), a bottom auger or plate to rest on lake bottom, bolts or lag screws to attach Dock Mount Bracket to side of dock and one 2-1/2”bolt and lock nut to install through post about 18” down from the top to act as a stop so that the Dori Pole doesn’t go all the way down to the lake bottom.
